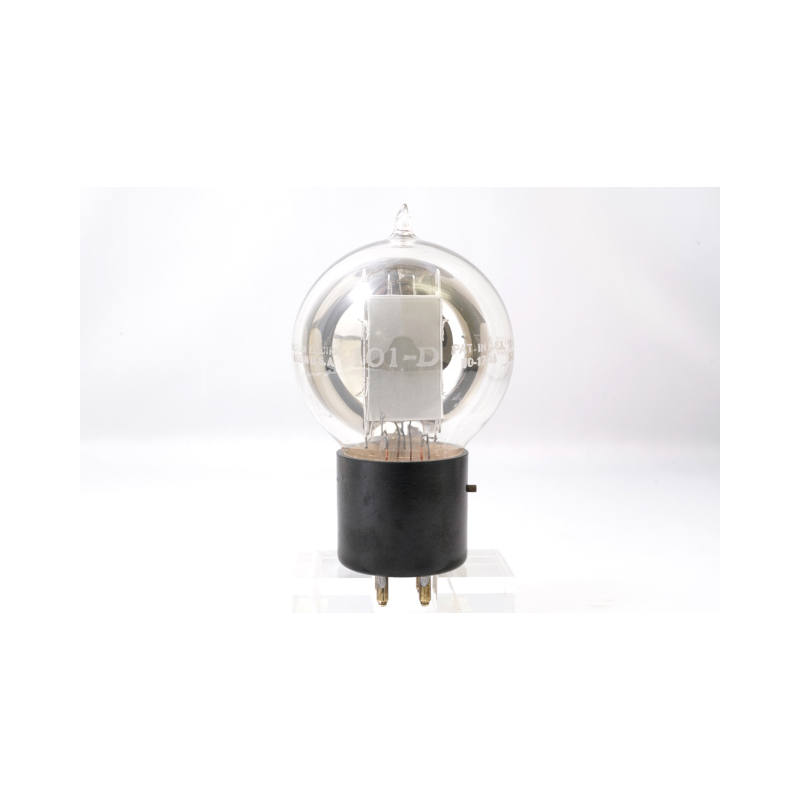

101D Triode Vacuum Tube

Low-mu triode with excellent linearity for driver and line stages

TriodeHeater 4.5 V · 1 AUX-4Western Electric 1925

Plate dissipation: 2W
Max plate voltage: 190V
Amplification factor: 6
Transconductance: 1.07mA/V
Plate resistance: 5.8kΩ

101D

Characteristics

Datasheet values, once each. Every value cites its sheet.

HeaterDirectly heated

Specifications of 101D — Heater
Heater voltageVh	4.5 V
Heater currentIh	1 A

Limiting valuesDatasheet maximum ratings — not to be exceeded

Specifications of 101D — Limiting values
Plate voltageVa max	190 V
Plate dissipationPa max	2 W

Mechanical

Specifications of 101D — Mechanical
Base	UX-4
Rarity	Legendary
Pinout

Small signalDatasheet parameters at the reference operating point — not limits

Specifications of 101D — Small signal
Transconductance	1.07 mA/V
Plate resistance	5.8 kΩ
Amplification factor	6

Capacitances

Specifications of 101D — Capacitances
Grid–cathode	4.4 pF
Grid–plate	6.4 pF
Plate–cathode	2.9 pF

Charactereditorial reading, not a measurement

Specifications of 101D — Character
Gain	6%
Power	5%
Drive	94%
Linearity	95%

datasheet cited · model or editorial reading · catalogue value, no citation attached yet · nothing invented

Typical operation

Canonical operating pointModel

B+: 275 V
Load: 13 kΩ
Va: 165 V
Ia: 3.22 mA
Vg: -20 V
Pd: 0.53 W
Gain: 11.6 dB

At Q: Norman Koren
μ: 6.3
gm: 0.75 mA/V
rp: 8.3 kΩ

Design a stage →

Using this tube

Applications

Line stage

Generic triode power (set) stage

Hi-Fi stereoHeadphone amp

Classic circuits

101D SE Classic
Single-Ended Triode0.4W
Western Electric 101D at low-voltage operating point. Rare early telephone repeater triode. Ethereal, delicate sound prized by collectors.
SEVb 135V · Vg -20V · RL 7.5kΩWestern Electric 101D Datasheet

Replace or compare

Sources

By Jean-Michel Falligan DevergneReviewed May 29, 2026Source : Western Electric 101D datasheet (1941 manual)Active model : Norman Koren

Manufacturer datasheets

1 manufacturer datasheets cross-checked for 101D1 verified

101D DatasheetLocal mirror · PDF

SPICE models

Revision and verification status

Source: Western Electric 101D datasheet (1941 manual)
Reviewed: 2026-05-29
Status: DataModelCalc
Model: Norman Koren

Context

The 101D is a directly-heated triode from the early Western Electric telephone amplifier lineage, producing roughly 0.5-1W in single-ended Class A. It is prized by a small community of extreme-fidelity enthusiasts who pair it with horn-loaded speakers of 105dB+ sensitivity, finding in it a purity and presence that surpasses even the type 45. The tube requires careful circuit design due to its very low power and high output impedance. Genuine WE 101Ds are museum-grade rarities commanding extraordinary prices, and even reproductions are limited-production specialty items.

History

Introduced: 1925
Manufacturer: Western Electric
Era: Pre-War
