6E5P

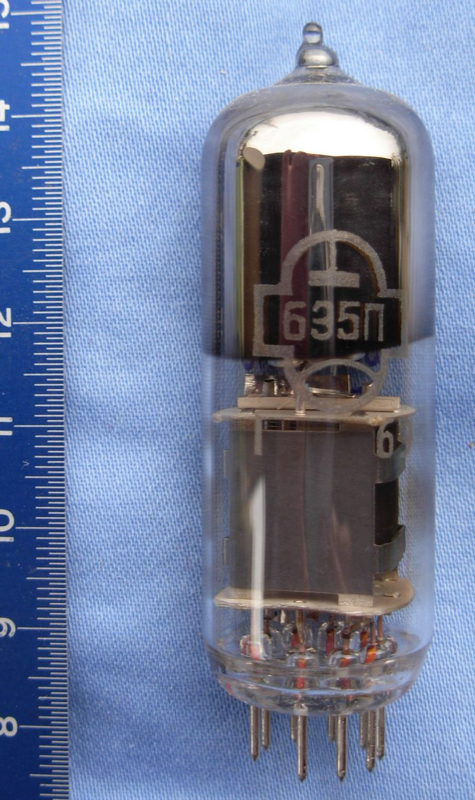

Pentode · IHT · 9-pin Noval · 1960
“Frame-grid pentode. Superb linearity triode-strapped.”
Small-signal pentode for low-noise voltage amplification
TRANSCONDUCTANCE0mA/V
Cgk0pF
Cgp0pF
Cpk0pF
GAIN0%
POWER21%
DRIVE50%
LINEARITY75%
EXECUTIVE SUMMARY
The 6E5P is a indirectly-heated pentode from Reflector, introduced around 1960. Commonly used in driver / power applications. Frame-grid pentode. Superb linearity triode-strapped.
VS 6E6P
Pd +1%Full comparison →
HISTORY
Introduced1960ManufacturerReflectorEquivalents6E6P
Late ProductionSPECIFICATIONS
Heater Voltage6.3V
Heater Current0.6A
Max Plate Voltage250V
Max Power8.3W
Sensitivity30.5 mA/V
Gain Factor—
Internal Impedance—
Pinout9-pin Noval
Era1960
RarityModerate
Input Capacitance6pF
Miller Capacitance0.08pF
Output Capacitance3.5pF
SPICE model not yet available. Loadline calculator requires calibrated Koren parameters.
