What is the E130L vacuum tube?

The E130L (E130L / 7534) is a pentode vacuum tube designed for power (se/pp) applications. Extraordinary wideband pentode. Massive gm..

What is a E130L substitute or equivalent?

Direct equivalents to the E130L include 7534. These share the same pinout and operating envelope, so they can usually be swapped without circuit changes — though batch-to-batch variations between manufacturers (NOS vs current production) may shift the sonic character noticeably.

What are the key specifications of the E130L?

Amplification factor μ ≈ 6, transconductance gm ≈ 27.5 mA/V, plate resistance rp ≈ 10.0 kΩ, max plate voltage 900 V, max plate dissipation 27.5 W, heater 6.3 V / 1.7 A.

Is the E130L still in production?

Production status varies by year and manufacturer. The current Amperatubes catalog classifies the E130L as Rare availability. NOS (new-old-stock) examples from RCA, Mullard, Tung-Sol, GE, Sylvania and Telefunken trade among collectors; modern production where it exists comes mostly from JJ Electronic, Electro-Harmonix, Tung-Sol (New Sensor), Genalex, and a handful of small-batch makers.

What does the E130L sound like?

Extraordinary wideband pentode. Massive gm.. Sonic character also depends heavily on the circuit operating point, the surrounding tubes in the stage, and the output transformer when present — use the interactive loadline calculator on this page to explore the trade-offs.

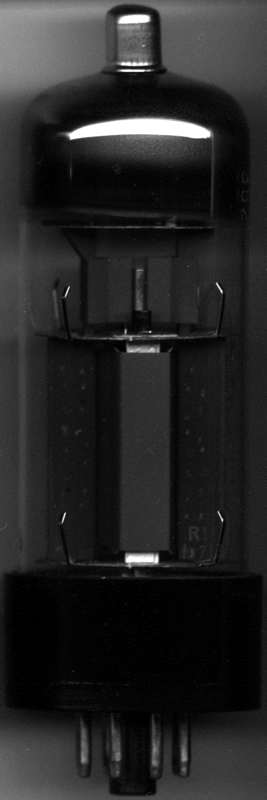

E130L 7534 Pentode Vacuum Tube

Also known as 7534

Power pentode delivering up to 27.5W in pentode, UL, or triode mode

PentodeHeater 6.3 V · 1.7 AOctal 8-pinTelefunken·Philips 1960

Plate dissipation: 27.5W
Max plate voltage: 900V
Max screen voltage: 250V
Max cathode current: 300mA
Transconductance: 27.5mA/V

E130L

Characteristics

Datasheet values, once each. Every value cites its sheet.

HeaterIndirectly heated

Specifications of E130L — Heater
Heater voltageVh	6.3 V
Heater currentIh	1.7 A

Limiting valuesDatasheet maximum ratings — not to be exceeded

Specifications of E130L — Limiting values
Plate voltageVa max	900 V
Screen voltageVg2 max	250 V
Plate dissipationPa max	27.5 W
Cathode currentIk max	300 mA
Grid resistorRg1 max	500 kΩ

Mechanical

Specifications of E130L — Mechanical
Base	Octal 8-pin
Rarity	Rare
Pinout

Small signalDatasheet parameters at the reference operating point — not limits

Specifications of E130L — Small signal
Transconductance	27.5 mA/V
Plate resistance	10 kΩ
Amplification factor	6

Capacitances

Specifications of E130L — Capacitances
Input	35 pF
Grid–plate	2 pF
Output	17 pF

Charactereditorial reading, not a measurement

Specifications of E130L — Character
Gain	6%
Power	69%
Drive	90%
Linearity	95%

datasheet cited · model or editorial reading · catalogue value, no citation attached yet · nothing invented

Using this tube

Interactive loadline calculator not available for this tube yet — it needs calibrated Koren or Ayumi parameters.

Applications

Power output

Generic pentode power (se/pp) stage

PA/public address

Replace or compare

Sources

By Jean-Michel Falligan DevergneReviewed May 29, 2026Source : Philips E130L/7534 datasheet

Manufacturer datasheets

3 manufacturer datasheets cross-checked for E130L / 75343 verified

E130L DatasheetLocal mirror · PDF

SPICE models

Revision and verification status

Source: Philips E130L/7534 datasheet
Reviewed: 2026-05-29
Status: DataModelCalc
Model: under review

Context

The E130L is a indirectly-heated pentode from Telefunken·Philips, introduced around 1960. It provides a gain factor (μ) of 6 with 10.0kΩ plate resistance. Commonly used in power (se/pp) applications. Extraordinary wideband pentode. Massive gm.

History

Introduced: 1960
Manufacturer: Telefunken·Philips
Era: Late Production
