Ampera

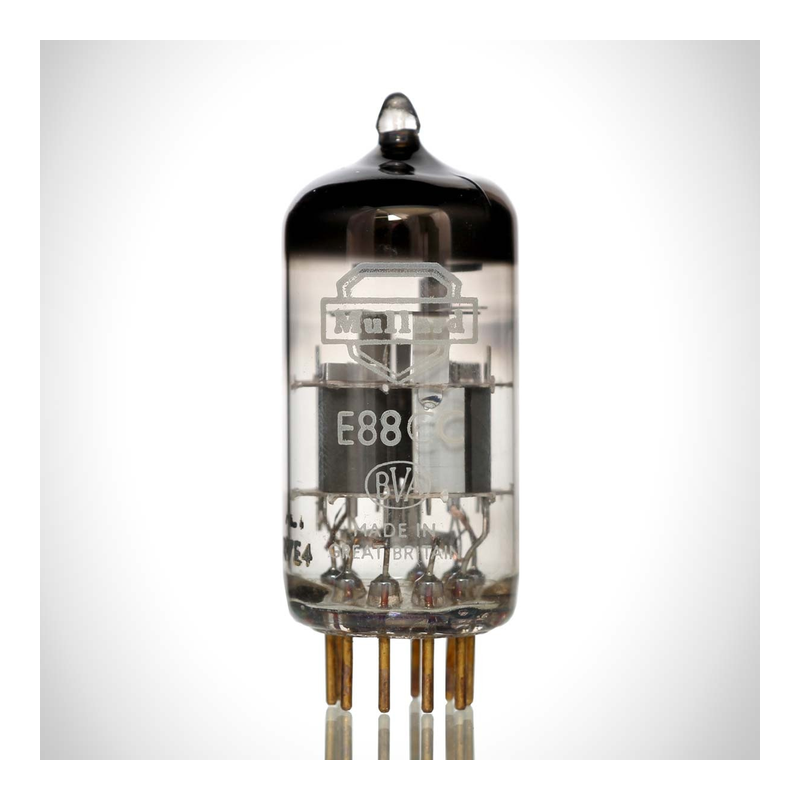

E88CC
Dual Triode · IHT · 9-pin Noval · 1958
“Premium 6DJ8.”
Medium-gain triode for driver and line stage applications
Datasheet ↗SPICE
GAIN FACTOR0
PLATE IMPEDANCE0kΩ
TRANSCONDUCTANCE0mA/V
Cgk0pF
Cgp0pF
Cpk0pF
GAIN33%
POWER5%
DRIVE97%
LINEARITY84%
TYPICAL OPERATING POINT
EXECUTIVE SUMMARY
The E88CC is the European professional designation for the 6922, manufactured to the Philips special-quality standard with gold pins and stringent testing. It is functionally identical to the 6922 but the E88CC designation specifically denotes manufacture to the Philips internal quality protocol, which guaranteed tighter section matching and lower noise. In practice, a 6922 and E88CC from the same factory and era are the same tube; the distinction matters primarily for provenance and collector grading. The designation appears most commonly on Philips Heerlen, Mullard Mitcham, and Siemens Munich production.
APPLICATIONS
Voltage amplifierPhase splitter
Audio Research SP-6 preampBAT VK-5i
• Hi-Fi stereo• Headphone amp
VS 6922
HISTORY
Introduced1958ManufacturerPhilips·SiemensEquivalents6922
Golden AgeSPECIFICATIONS
Heater Voltage6.3V
Heater Current0.365A
Max Plate Voltage130V
Max Power1.8W
Sensitivity12.5 mA/V
Gain Factor33
Internal Impedance2.6kΩ
Pinout9-pin Noval
Era1958
RaritySought-after
Input Capacitance3.3pF
Miller Capacitance1.4pF
Output Capacitance1.3pF
