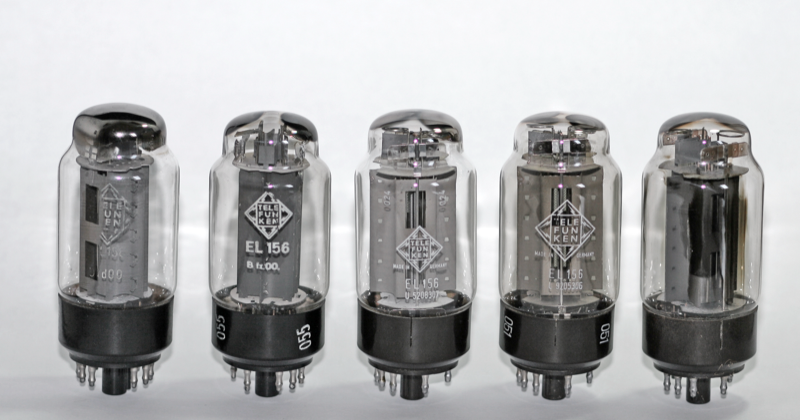

EL156 Pentode Vacuum Tube

Power pentode delivering up to 50W in pentode, UL, or triode mode

PentodeHeater 6.3 V · 1.9 A10-pin Y10ATelefunken·Siemens 1956

Plate dissipation: 50W
Max plate voltage: 800V
Max screen voltage: 450V
Max cathode current: 180mA
Transconductance: 11mA/V

EL156

Characteristics

Datasheet values, once each. Every value cites its sheet.

HeaterIndirectly heated

Specifications of EL156 — Heater
Heater voltageVh	6.3 V
Heater currentIh	1.9 A

Limiting valuesDatasheet maximum ratings — not to be exceeded

Specifications of EL156 — Limiting values
Plate voltageVa max	800 V
Screen voltageVg2 max	450 V
Plate dissipationPa max	50 W
Screen dissipationPg2 max	8 W
Cathode currentIk max	180 mA

Mechanical

Specifications of EL156 — Mechanical
Base	10-pin Y10A
Rarity	Legendary
Pinout

Small signalDatasheet parameters at the reference operating point — not limits

Specifications of EL156 — Small signal
Transconductance	11 mA/V
Plate resistance	20 kΩ

Capacitances

Specifications of EL156 — Capacitances
Input	19 pF
Grid–plate	0.5 pF
Output	7.5 pF

Charactereditorial reading, not a measurement

Specifications of EL156 — Character
Gain	0%
Power	100%
Drive	80%
Linearity	75%

datasheet cited · model or editorial reading · catalogue value, no citation attached yet · nothing invented

Typical operation

Conditions published by the manufacturers, one row per condition. Nothing is computed.

Typical operation
Setup	Va	Vg2	Ia	Ig2	Pout	Source
Class A, single-endedpentode connection	350 V	250 V	120 mA	15 mA	15 W	read on the sheet Telefunken · 1965 · transcript
triode connection, single-endedclass not stated	500 V		120 mA		30 W	read on the sheet Telefunken · 1951 · transcript

Using this tube

Interactive loadline calculator not available for this tube yet — it needs calibrated Koren or Ayumi parameters.

Applications

Power output

Generic pentode power (pp) stage

PA/public address

Replace or compare

Sources

By Jean-Michel Falligan DevergneReviewed May 29, 2026

Manufacturer datasheets

2 manufacturer datasheets cross-checked for EL1562 verified

EL156 DatasheetFrank's Electron Tube Pages · PDF

SPICE models

Revision and verification status

Source: Telefunken·Siemens
Reviewed: 2026-05-29
Status: DataModelCalc
Model: under review
