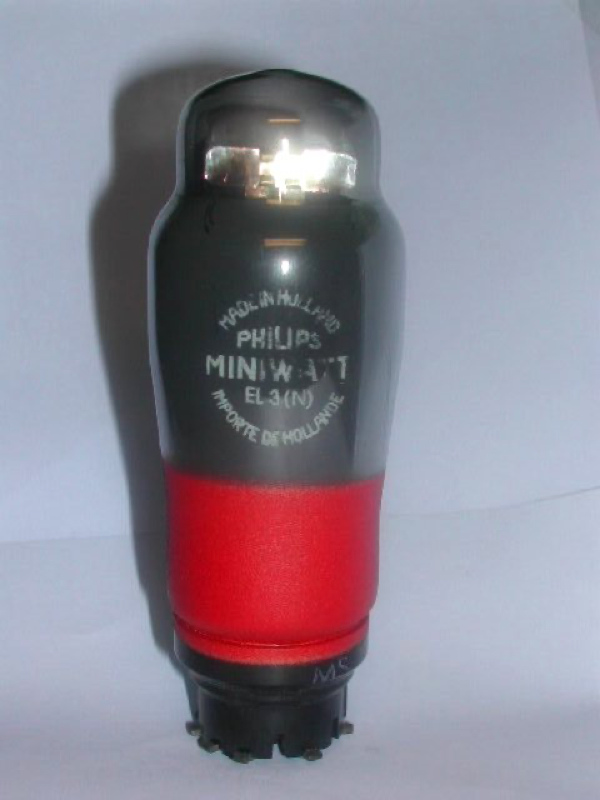

EL3N Pentode Vacuum Tube

Also known as 4694

Small-signal pentode for low-noise voltage amplification

PentodeHeater 6.3 V · 0.9 A8-pin Side Contact P8APhilips 1938

Plate dissipation: 9W
Max plate voltage: 250V
Transconductance: 9mA/V

EL3N

Characteristics

Datasheet values, once each. Every value cites its sheet.

HeaterIndirectly heated

Specifications of EL3N — Heater
Heater voltageVh	6.3 V
Heater currentIh	0.9 A

Limiting valuesDatasheet maximum ratings — not to be exceeded

Specifications of EL3N — Limiting values
Plate voltageVa max	250 V
Plate dissipationPa max	9 W

Mechanical

Specifications of EL3N — Mechanical
Base	8-pin Side Contact P8A
Rarity	Sought-after
Pinout

Small signalDatasheet parameters at the reference operating point — not limits

Specifications of EL3N — Small signal
Transconductance	9 mA/V
Plate resistance	50 kΩ
Amplification factor	23

Capacitances

Specifications of EL3N — Capacitances
Input	8 pF
Grid–plate	0.3 pF
Output	7 pF

Charactereditorial reading, not a measurement

Specifications of EL3N — Character
Gain	23%
Power	23%
Drive	50%
Linearity	89%

datasheet cited · model or editorial reading · catalogue value, no citation attached yet · nothing invented

Typical operation

Conditions published by the manufacturers, one row per condition. Nothing is computed.

Typical operation
Setup	Va	Vg2	Vg1 / Rk	Ia	Ig2	Load	Source
Class A, single-endedpentode connection	250 V	250 V	-6 V	36 mA	4 mA	7 kΩ	OCR, to be checked Philips · 1953 · p. 1 · transcript

Using this tube

Interactive loadline calculator not available for this tube yet — it needs calibrated Koren or Ayumi parameters.

Replace or compare

Sources

By Jean-Michel Falligan DevergneReviewed May 29, 2026

Manufacturer datasheets

1 manufacturer datasheets cross-checked for EL3N1 verified

EL3N DatasheetLocal mirror · PDF

SPICE models

Revision and verification status

Source: Philips
Reviewed: 2026-05-29
Status: DataModelCalc
Model: under review

Context

The EL3N is a indirectly-heated pentode from Philips, introduced around 1938. It provides a gain factor (μ) of 23 with 50.0kΩ plate resistance. Commonly used in power (se) applications. European oval cathode pentode. Sakuma favorite.

History

Introduced: 1938
Manufacturer: Philips
Era: Pre-War
