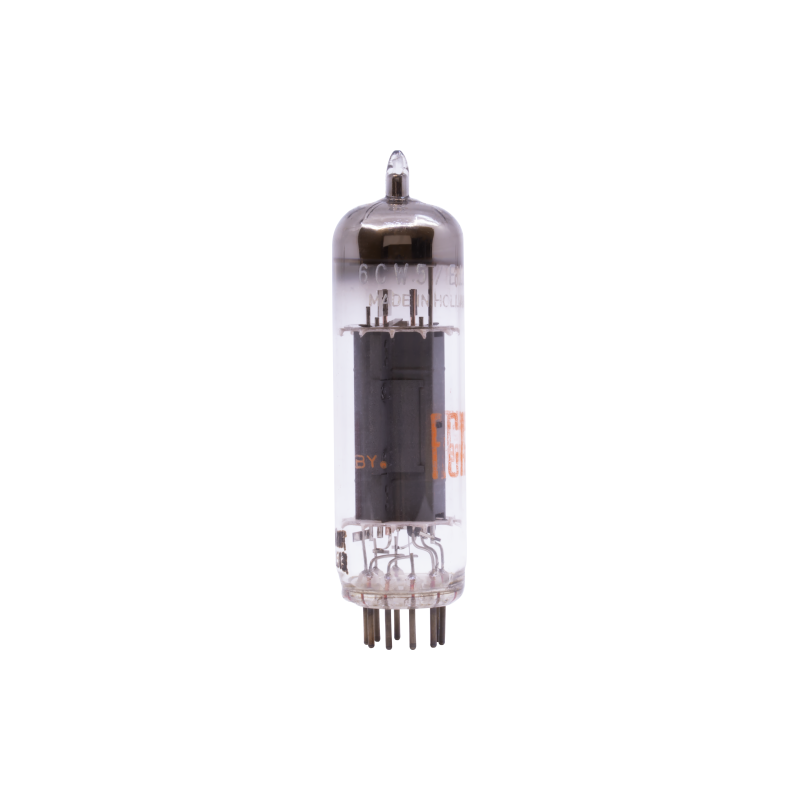

EL86 Pentode Vacuum Tube

Also known as 6CW5

Power pentode delivering up to 12W in pentode, UL, or triode mode

PentodeHeater 6.3 V · 0.76 A9-pin NovalPhilips 1958

Plate dissipation: 12W
Max plate voltage: 250V
Max screen voltage: 250V
Max cathode current: 100mA
Transconductance: 11mA/V

EL86

Characteristics

Datasheet values, once each. Every value cites its sheet.

HeaterIndirectly heated

Specifications of EL86 — Heater
Heater voltageVh	6.3 V
Heater currentIh	0.76 A

Limiting valuesDatasheet maximum ratings — not to be exceeded

Specifications of EL86 — Limiting values
Plate voltageVa max	250 V
Screen voltageVg2 max	250 V
Plate dissipationPa max	12 W
Cathode currentIk max	100 mA
Grid resistorRg1 max	1 MΩ
Peak plate voltageVao	550 V

Mechanical

Specifications of EL86 — Mechanical
Base	9-pin Noval
Rarity	Common
Pinout

Small signalDatasheet parameters at the reference operating point — not limits

Specifications of EL86 — Small signal
Transconductance	11 mA/V
Plate resistance	23 kΩ
Amplification factor	8

Capacitances

Specifications of EL86 — Capacitances
Input	13 pF
Grid–plate	0.6 pF
Output	6.8 pF

Charactereditorial reading, not a measurement

Specifications of EL86 — Character
Gain	8%
Power	30%
Drive	77%
Linearity	95%

datasheet cited · model or editorial reading · catalogue value, no citation attached yet · nothing invented

Typical operation

Conditions published by the manufacturers, one row per condition. Nothing is computed.

Typical operation
Setup	B+	Vg1 / Rk	Ia	Ig2	Load	Pout	THD	Source
triode connection, single-endedclass not stated · cathode bias	200 V	215 Ω	64 mA	3.2 mA	2.5 kΩ	5.3 W	10%	OCR, to be checked Mullard · 1960 · p. 1 · transcript
Class A, push-pullpentode connection · cathode bias	200 V	215 Ω	65 mA	3.2 mA				OCR, to be checked Philips · p. 4 · transcript

Using this tube

Applications

Power output

Grundig Hi-Fi consolesTelefunken Opus series

Replace or compare

Sources

By Jean-Michel Falligan DevergneReviewed May 29, 2026Source : Philips/Mullard EL86/6CW5 datasheet · amplifiedpartsActive model : Koren pentode

Manufacturer datasheets

5 manufacturer datasheets cross-checked for EL865 verified

Triode-connectedMullardOctober 1960 (1)

Ia: 64 mA
µ: 200
Pout: 5.3 W

EL86 DatasheetLocal mirror · PDF

SPICE models

Revision and verification status

Source: Philips/Mullard EL86/6CW5 datasheet · amplifiedparts
Reviewed: 2026-05-29
Status: DataModelCalc
Model: Koren pentode

Context

The EL86 is a indirectly-heated pentode from Philips, introduced around 1958. It provides a gain factor (μ) of 8 with 23.0kΩ plate resistance. Commonly used in power applications. European audio output.

History

Introduced: 1958
Manufacturer: Philips
Era: Golden Age
