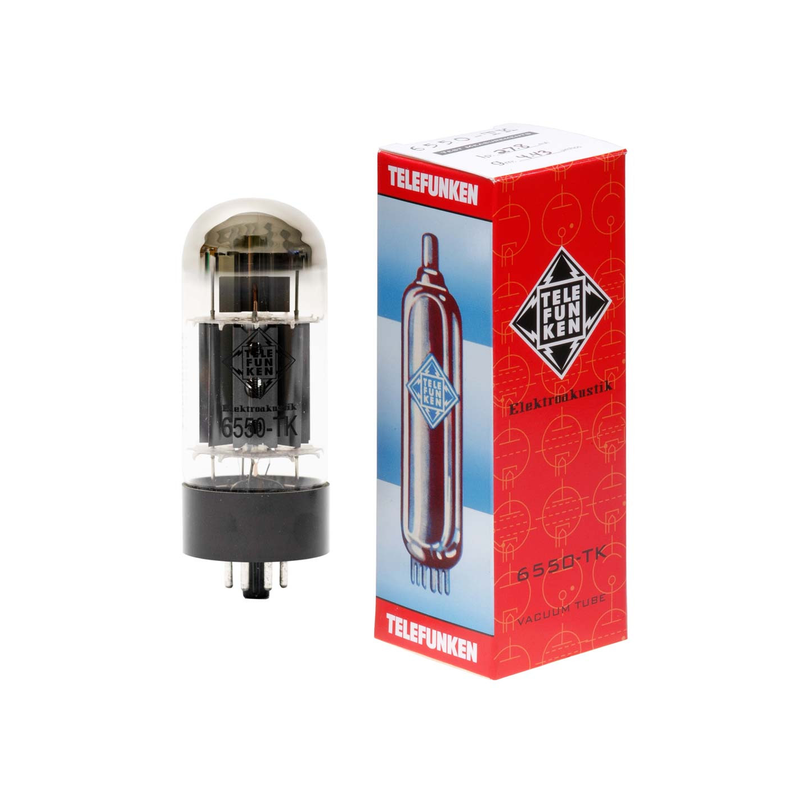

6550

Tetrode · IHT · Octal · 1955

American powerhouse.

Beam power tetrode rated at 42W for high-power output stages

Datasheet ↗SPICE
TRANSCONDUCTANCE0mA/V
GAIN0%
POWER100%
DRIVE50%
LINEARITY75%
HEATER6.3V / 1.6A
MAX PLATE600V / 42W
BASEoctal
EXECUTIVE SUMMARY

The 6550 is a beam power tetrode developed by Tung-Sol in 1955 specifically for high-power audio amplifier use, with a plate dissipation of 35W. It shares the KT88's octal base and general operating envelope but has a distinctly different sonic character: tighter, more controlled, and more linear than the KT88, with slightly less midrange bloom but superior bass definition. The 6550 is the original output tube of the McIntosh MC275 and many Ampeg bass amplifiers, where its clean headroom and damping characteristics are valued. Tung-Sol 6550 (original and reissue), GE 6550A, and Svetlana/SED 6550C are the notable variants.

APPLICATIONS
High-power output
Dynaco Mark IIIMcIntosh MC275SVT bass amplifier
Guitar amp PA/public address
VS KT88
HISTORY
Introduced1955ManufacturerTung-Sol·GEEquivalentsKT88
Golden Age
SPECIFICATIONS
Heater Voltage6.3V
Heater Current1.6A
Max Plate Voltage600V
Max Power42W
Sensitivity11 mA/V
Gain Factor
Internal Impedance
PinoutOctal
Era1955
RarityCommon
PDF

6550 Datasheet

Frank's Electron Tube Pages · PDF
