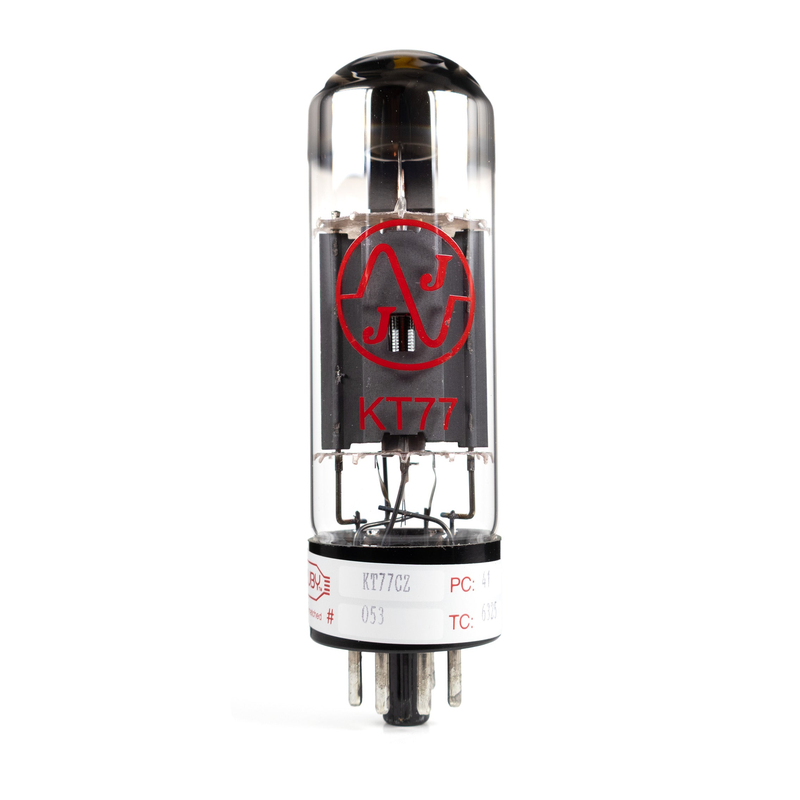

KT77 Tetrode Vacuum Tube

Also known as EL34

Beam power tetrode rated at 25W for high-power output stages

TetrodeHeater 6.3 V · 1.4 AOctalGEC 1957

Plate dissipation: 25W
Max plate voltage: 800V
Max screen voltage: 800V
Max cathode current: 180mA
Transconductance: 10.5mA/V

KT77

Characteristics

Datasheet values, once each. Every value cites its sheet.

HeaterIndirectly heated

Specifications of KT77 — Heater
Heater voltageVh	6.3 V
Heater currentIh	1.4 A

Limiting valuesDatasheet maximum ratings — not to be exceeded

Specifications of KT77 — Limiting values
Plate voltageVa max	800 V
Screen voltageVg2 max	800 V
Plate dissipationPa max	25 W
Cathode currentIk max	180 mA

Mechanical

Specifications of KT77 — Mechanical
Base	Octal
Rarity	Sought-after
Pinout

Small signalDatasheet parameters at the reference operating point — not limits

Specifications of KT77 — Small signal
Transconductance	10.5 mA/V
Plate resistance	23 kΩ
Amplification factor	12

Capacitances

Specifications of KT77 — Capacitances
Input	16.5 pF
Grid–plate	1 pF
Output	9 pF

Charactereditorial reading, not a measurement

Specifications of KT77 — Character
Gain	12%
Power	63%
Drive	77%
Linearity	94%

datasheet cited · model or editorial reading · catalogue value, no citation attached yet · nothing invented

Typical operation

Conditions published by the manufacturers, one row per condition. Nothing is computed.

Typical operation
Setup	B+	Va	Vg2	Ia	Load	Pout	THD	Source
Class AB1, push-pullultra-linear · cathode bias	430 V	390 V	390 V	66 mA	6 kΩ a-a	34 W	2.5%	OCR, to be checked Genalex / The M-O Valve Company Limited · 1977 · p. 2 · transcript
Class AB1, push-pulltriode connection · cathode bias	430 V	396 V		69 mA	5 kΩ a-a	18 W	1.2%	OCR, to be checked Genalex / The M-O Valve Company Limited · 1977 · p. 3 · transcript

Using this tube

Applications

High-power output

Marshall JCM800Hiwatt DR103

Guitar amp

Featured in these amplifiers

Replace or compare

Sources

By Jean-Michel Falligan DevergneReviewed May 29, 2026Source : JJ KT77 datasheet (true pentode w/ g3)Active model : Koren v1

Manufacturer datasheets

2 manufacturer datasheets cross-checked for KT772 verified

KT77 DatasheetLocal mirror · PDF

SPICE models

Revision and verification status

Source: JJ KT77 datasheet (true pentode w/ g3)
Reviewed: 2026-05-29
Status: DataModelCalc
Model: Koren v1

Context

The KT77 is the GEC/MOV true pentode equivalent to the EL34, sharing the same pinout and similar operating characteristics but with subtly different sonic properties. It was developed as a higher-reliability, higher-linearity alternative to the EL34 for professional and industrial applications. The KT77 tends to offer slightly tighter bass and more extended treble than a typical EL34 while retaining the midrange richness of the pentode topology. Original GEC production was limited and commands high prices; the Gold Lion reissue by New Sensor is the primary current production source and is well-regarded.

History

Introduced: 1957
Manufacturer: GEC
