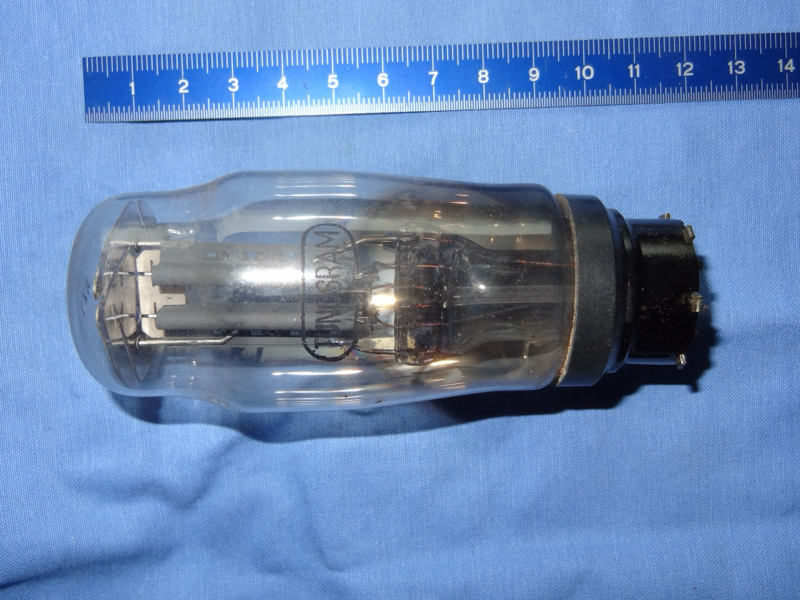

AZ1 Rectifier Vacuum Tube

Also known as RGN1064

Full-wave rectifier for vacuum tube power supply designs

RectifierHeater 4 V · 1.1 ASide Contact P8APhilips·Telefunken 1935

Max DC output current: 100mA
Max RMS input per anode: 500V

AZ1

Characteristics

Datasheet values, once each. Every value cites its sheet.

HeaterDirectly heated

Specifications of AZ1 — Heater
Heater voltageVh	4 V
Heater currentIh	1.1 A

Rectifier limitsDatasheet maximum ratings — not to be exceeded

Specifications of AZ1 — Rectifier limits
Max RMS input voltage per anode	500 V
Io max (DC output current)	100 mA
Max reservoir capacitor	60 µF
Min series resistance per anode	100 Ω

Mechanical

Specifications of AZ1 — Mechanical
Base	Side Contact P8A
Rarity	Moderate
Pinout

datasheet cited · model or editorial reading · catalogue value, no citation attached yet · nothing invented

Using this tube

Interactive loadline calculator not available for this tube yet — it needs calibrated Koren or Ayumi parameters.

Applications

Power supply rectification

Generic rectifier rectifier stage

Replace or compare

Sources

By Jean-Michel Falligan DevergneReviewed May 29, 2026Source : Philips AZ1 datasheet

Manufacturer datasheets

8 manufacturer datasheets cross-checked for AZ18 verified

AZ1 DatasheetLocal mirror · PDF

SPICE models

Revision and verification status

Source: Philips AZ1 datasheet
Reviewed: 2026-05-29
Status: DataModelCalc
Model: under review

Context

The AZ1 is a directly-heated rectifier from Philips·Telefunken, introduced around 1935. Commonly used in rectifier applications. Classic European rectifier. Gentle delivery.

History

Introduced: 1935
Manufacturer: Philips·Telefunken
