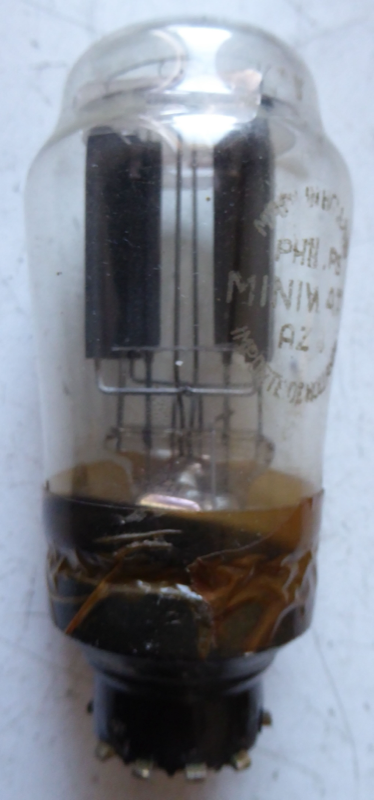

AZ4 Rectifier Vacuum Tube

Also known as RGN2004 · AZ12

Full-wave rectifier for vacuum tube power supply designs

RectifierHeater 4 V · 2.2 ASide Contact P8APhilips·Telefunken 1937

Max DC output current: 200mA
Max RMS input per anode: 500V

AZ4

Characteristics

Datasheet values, once each. Every value cites its sheet.

HeaterIndirectly heated

Specifications of AZ4 — Heater
Heater voltageVh	4 V
Heater currentIh	2.2 A

Rectifier limitsDatasheet maximum ratings — not to be exceeded

Specifications of AZ4 — Rectifier limits
Max RMS input voltage per anode	500 V
Io max (DC output current)	200 mA
Max reservoir capacitor	60 µF
Min series resistance per anode	100 Ω

Mechanical

Specifications of AZ4 — Mechanical
Base	Side Contact P8A
Rarity	Sought-after
Pinout

datasheet cited · model or editorial reading · catalogue value, no citation attached yet · nothing invented

Using this tube

Interactive loadline calculator not available for this tube yet — it needs calibrated Koren or Ayumi parameters.

Applications

Power supply rectification

Generic rectifier rectifier stage

Replace or compare

Sources

By Jean-Michel Falligan DevergneReviewed May 29, 2026Source : Telefunken AZ4 datasheet

Manufacturer datasheets

5 manufacturer datasheets cross-checked for AZ45 verified

AZ4 DatasheetLocal mirror · PDF

SPICE models

Revision and verification status

Source: Telefunken AZ4 datasheet
Reviewed: 2026-05-29
Status: DataModelCalc
Model: under review

Context

The AZ4 is a indirectly-heated rectifier from Philips·Telefunken, introduced around 1937. Commonly used in rectifier applications. European high-current rectifier. HiFi favorite.

History

Introduced: 1937
Manufacturer: Philips·Telefunken
Era: Pre-War
