What is the E182CC vacuum tube?

The E182CC (E182CC / 7119) is a triode vacuum tube designed for driver / preamp applications. SQ dual triode. High perveance..

What is a E182CC substitute or equivalent?

Direct equivalents to the E182CC include 7119, CV5766. These share the same pinout and operating envelope, so they can usually be swapped without circuit changes — though batch-to-batch variations between manufacturers (NOS vs current production) may shift the sonic character noticeably.

What are the key specifications of the E182CC?

Amplification factor μ ≈ 24, transconductance gm ≈ 15 mA/V, plate resistance rp ≈ 1.6 kΩ, max plate voltage 300 V, max plate dissipation 4.5 W, heater 6.3 V / 0.64 A.

Is the E182CC still in production?

Production status varies by year and manufacturer. The current Amperatubes catalog classifies the E182CC as Sought-after availability. NOS (new-old-stock) examples from RCA, Mullard, Tung-Sol, GE, Sylvania and Telefunken trade among collectors; modern production where it exists comes mostly from JJ Electronic, Electro-Harmonix, Tung-Sol (New Sensor), Genalex, and a handful of small-batch makers.

What does the E182CC sound like?

SQ dual triode. High perveance.. Sonic character also depends heavily on the circuit operating point, the surrounding tubes in the stage, and the output transformer when present — use the interactive loadline calculator on this page to explore the trade-offs.

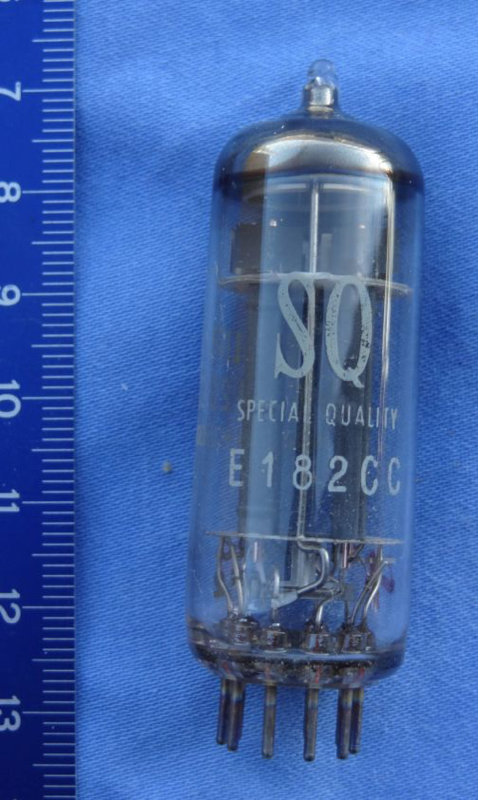

E182CC 7119 Triode Vacuum Tube

Also known as 7119 · CV5766

Medium-gain triode for driver and line stage applications

Dual triodeHeater 6.3 V · 0.64 A9-pin Noval2 sectionsPhilips·Mullard 1960

Plate dissipation: 4.5W
Max plate voltage: 300V
Amplification factor: 24
Transconductance: 15mA/V
Plate resistance: 1.6kΩ

E182CC

Characteristics

Datasheet values, once each. Every value cites its sheet.

HeaterIndirectly heated

Specifications of E182CC — Heater
Heater voltageVh	6.3 V
Heater currentIh	0.64 A

Limiting valuesDatasheet maximum ratings — not to be exceeded

Specifications of E182CC — Limiting values
Plate voltageVa max	300 V
Plate dissipationPa max	4.5 W
Cathode currentIk max	60 mA
Peak plate voltageVao	600 V

Mechanical

Specifications of E182CC — Mechanical
Base	9-pin Noval
Rarity	Sought-after
Pinout

Small signalDatasheet parameters at the reference operating point — not limits

Specifications of E182CC — Small signal
Transconductance	15 mA/V
Plate resistance	1.6 kΩ
Amplification factor	24

Capacitances

Specifications of E182CC — Capacitances
Grid–cathode	6 pF
Grid–plate	4 pF
Plate–cathode	1.1 pF

Charactereditorial reading, not a measurement

Specifications of E182CC — Character
Gain	24%
Power	11%
Drive	98%
Linearity	88%

datasheet cited · model or editorial reading · catalogue value, no citation attached yet · nothing invented

Typical operation

Canonical operating pointModel

B+: 250 V
Load: 3 kΩ
Va: 150 V
Ia: 19.94 mA
Vg: -4.5 V
Pd: 2.99 W
Gain: 22.9 dB

At Q: Ayumi Nakabayashi
μ: 22
gm: 10.33 mA/V
rp: 2.1 kΩ

Using this tube

Applications

Voltage amplifier
Headphone output
Phase splitter

Generic triode driver / preamp stage

Hi-Fi stereoHeadphone amp

Replace or compare

Sources

By Jean-Michel Falligan DevergneReviewed May 29, 2026Active model : Ayumi Nakabayashi

Manufacturer datasheets

2 manufacturer datasheets cross-checked for E182CC / 71192 verified

E182CC DatasheetLocal mirror · PDF

SPICE models

Revision and verification status

Source: Philips·Mullard
Reviewed: 2026-05-29
Status: DataModelCalc
Model: Ayumi Nakabayashi

Context

The E182CC is a dual indirectly-heated triode from Philips·Mullard, introduced around 1960. It provides a gain factor (μ) of 24 with 1600Ω plate resistance. Commonly used in driver / preamp applications. SQ dual triode. High perveance.

History

Introduced: 1960
Manufacturer: Philips·Mullard
Era: Late Production
