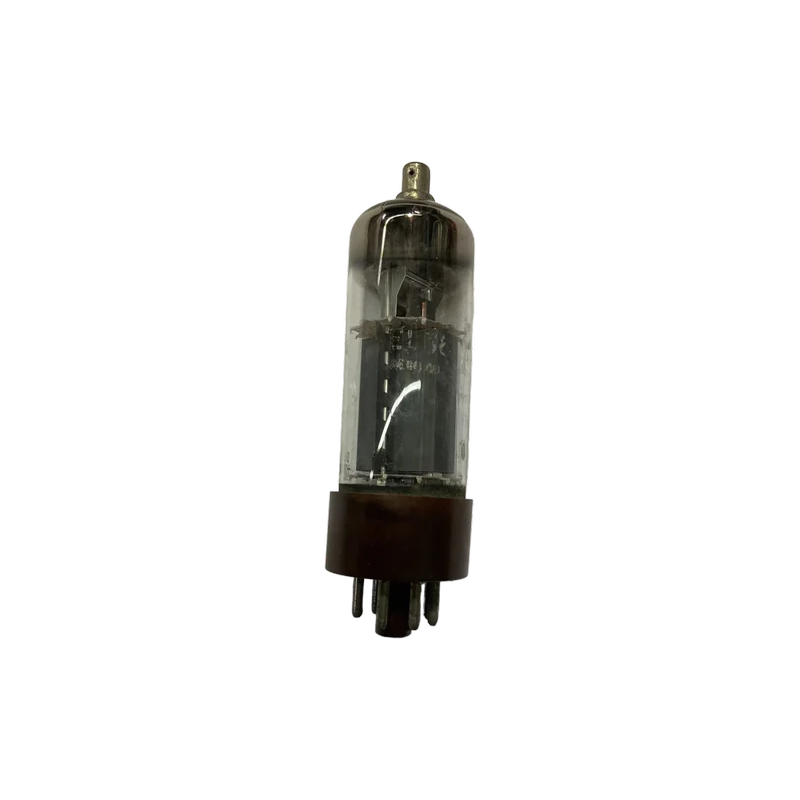

EL36
Pentode · IHT · Octal · 1955
“European TV sweep.”
Power pentode delivering up to 12W in pentode, UL, or triode mode
Datasheet ↗SPICE
TRANSCONDUCTANCE0mA/V
Cgk0pF
Cgp0pF
Cpk0pF
GAIN0%
POWER30%
DRIVE50%
LINEARITY75%
EXECUTIVE SUMMARY
The EL36 is a indirectly-heated pentode from Philips, introduced around 1955. Commonly used in power applications. European TV sweep.
APPLICATIONS
Power output
Generic pentode power stage
HISTORY
Introduced1955ManufacturerPhilipsEquivalents6CM5
Golden AgeSPECIFICATIONS
Heater Voltage6.3V
Heater Current1.3A
Max Plate Voltage550V
Max Power12W
Sensitivity11 mA/V
Gain Factor—
Internal Impedance—
PinoutOctal
Era1955
RarityCommon
Input Capacitance15pF
Miller Capacitance0.5pF
Output Capacitance7pF
