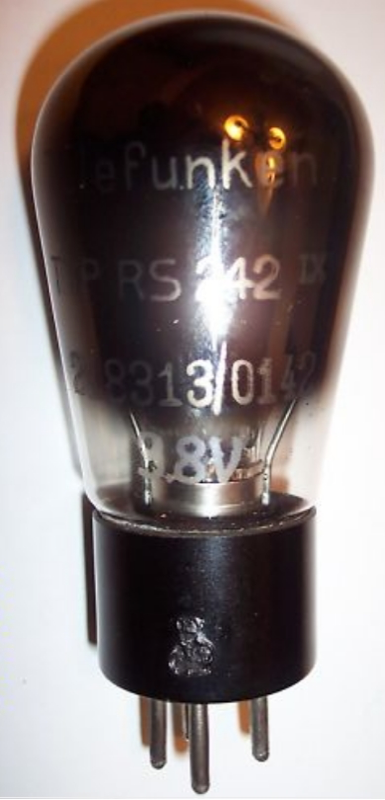

RS242 Triode Vacuum Tube

Also known as E130 · RS242X

Power triode delivering 12W for push-pull and SET designs

TriodeHeater 3.8 V · 0.76 A4-pin EuropeanTelefunken 1940

Plate dissipation: 12W
Max plate voltage: 350V
Transconductance: 3mA/V

RS242

Characteristics

Datasheet values, once each. Every value cites its sheet.

HeaterDirectly heated

Specifications of RS242 — Heater
Heater voltageVh	3.8 V
Heater currentIh	0.76 A

Limiting valuesDatasheet maximum ratings — not to be exceeded

Specifications of RS242 — Limiting values
Plate voltageVa max	350 V
Plate dissipationPa max	12 W

Mechanical

Specifications of RS242 — Mechanical
Base	4-pin European
Rarity	Collector
Pinout

Small signalDatasheet parameters at the reference operating point — not limits

Specifications of RS242 — Small signal
Transconductance	3 mA/V
Plate resistance	5.6 kΩ
Amplification factor	16.8

Capacitances

Specifications of RS242 — Capacitances
Grid–cathode	8 pF
Grid–plate	5 pF
Plate–cathode	6 pF

Charactereditorial reading, not a measurement

Specifications of RS242 — Character
Gain	17%
Power	30%
Drive	94%
Linearity	92%

datasheet cited · model or editorial reading · catalogue value, no citation attached yet · nothing invented

Using this tube

Interactive loadline calculator not available for this tube yet — it needs calibrated Koren or Ayumi parameters.

Applications

SET output
Push-pull output

Generic triode power (se) stage

Hi-Fi stereo

Replace or compare

Sources

By Jean-Michel Falligan Devergne

Manufacturer datasheets

RS242 DatasheetLocal mirror · PDF

SPICE models

Revision and verification status

Source: Telefunken
Reviewed: —
Status: DataModelCalc
Model: under review

Context

The RS242 is a directly-heated triode from Telefunken, introduced around 1940. It provides a gain factor (μ) of 16.8 with 5600Ω plate resistance. Commonly used in power (se) applications. DHT triode. Smaller RS241 sister.
